Offset Series
R75PF
Feature
| R75PF | ||

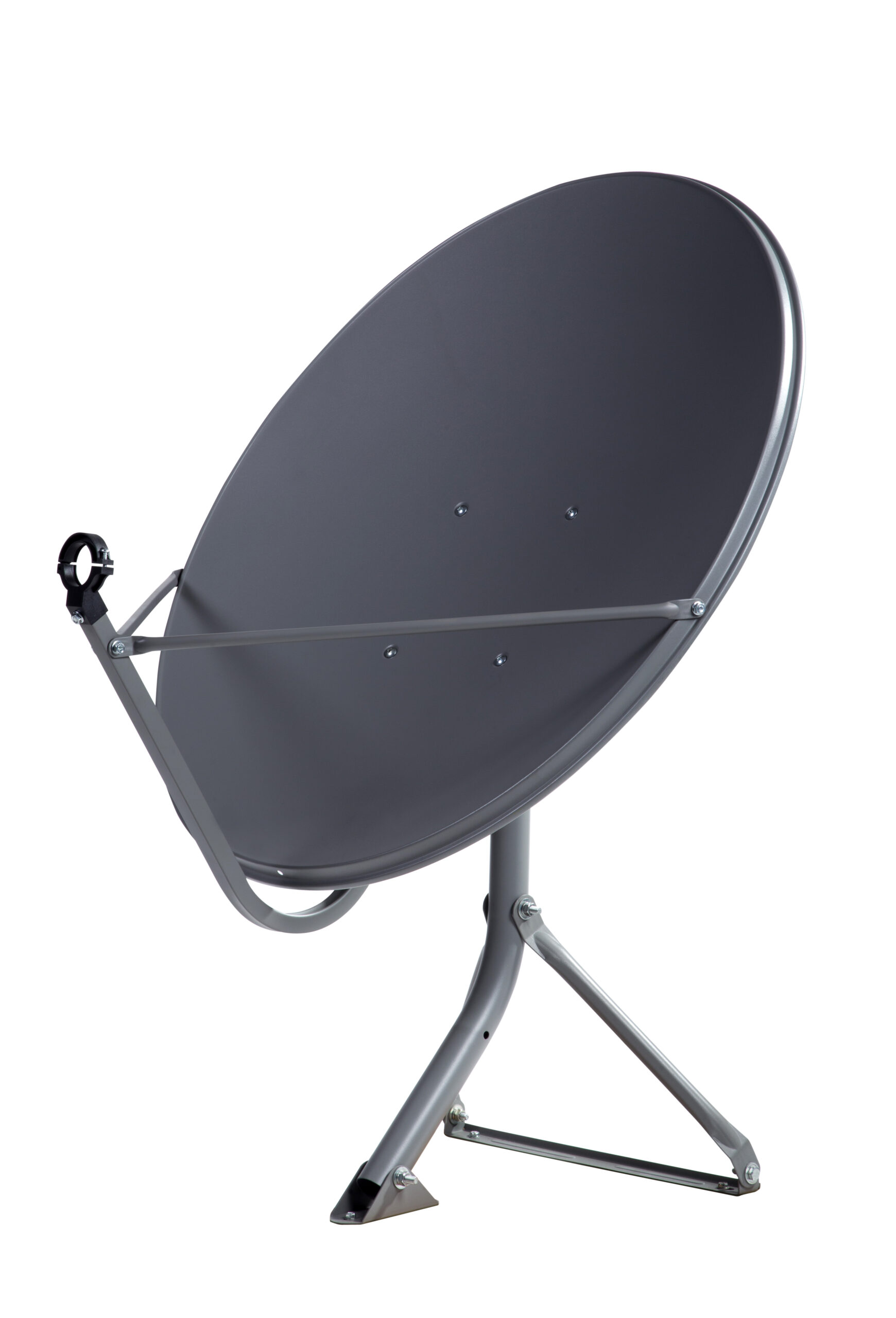

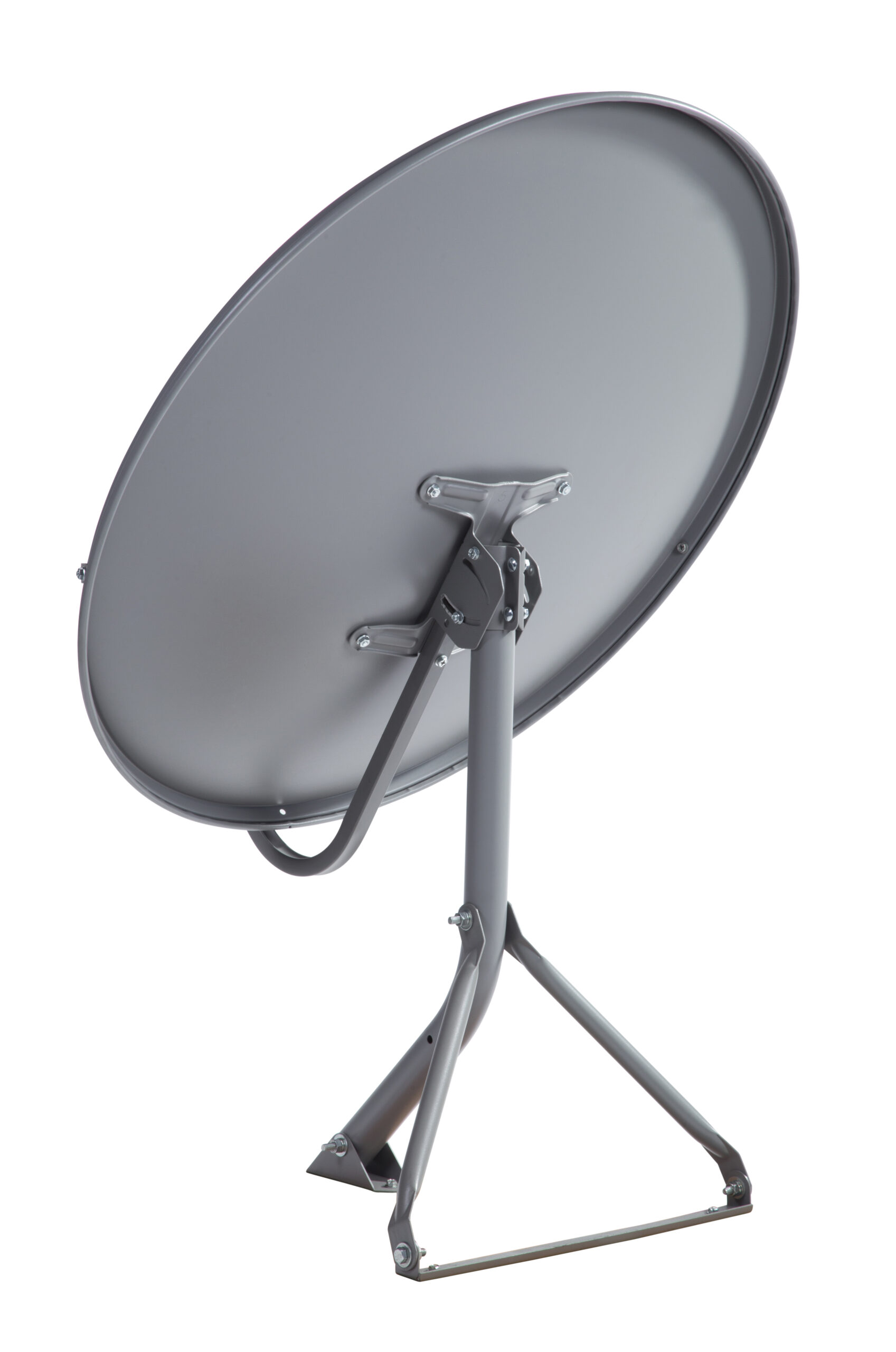

| 75cm offset dish with rolled edge | ||
| Specification | ||
| Type | Offset | |
| Offset Angle | 24.62° | |
| Reception Frequency | 10.71 – 12.75 GHz | |
| KU-BAND @12.75GHz | 38.72 db | |
| Focus Length | 450 mm | |
| Efficiency | 75% min | |
| Horizontal Axis | 74.5 cm | |
| Vertical Axis | 81.95 cm | |
| Azimuth (ground) | 0° ~ 360° | |
| Elevation (ground) | 10° ~ 90° | |
| Azimuth (wall) | 0° ~ 180° | |
| Elevation (wall) | 10° ~ 90° | |
| F/D Ratio | 0.6 | |
| Material | Galvanized Steel | |
| Finish | Polyester Powder Coating | |
| Suitable Pole Diameter | 42mm | |
| Relative Humidity | 0 ~ 100 % | |
| Operating Temperature | -40°C ~ 60°C | |
