Offset Series
R65PF
Feature
| R65PF | ||

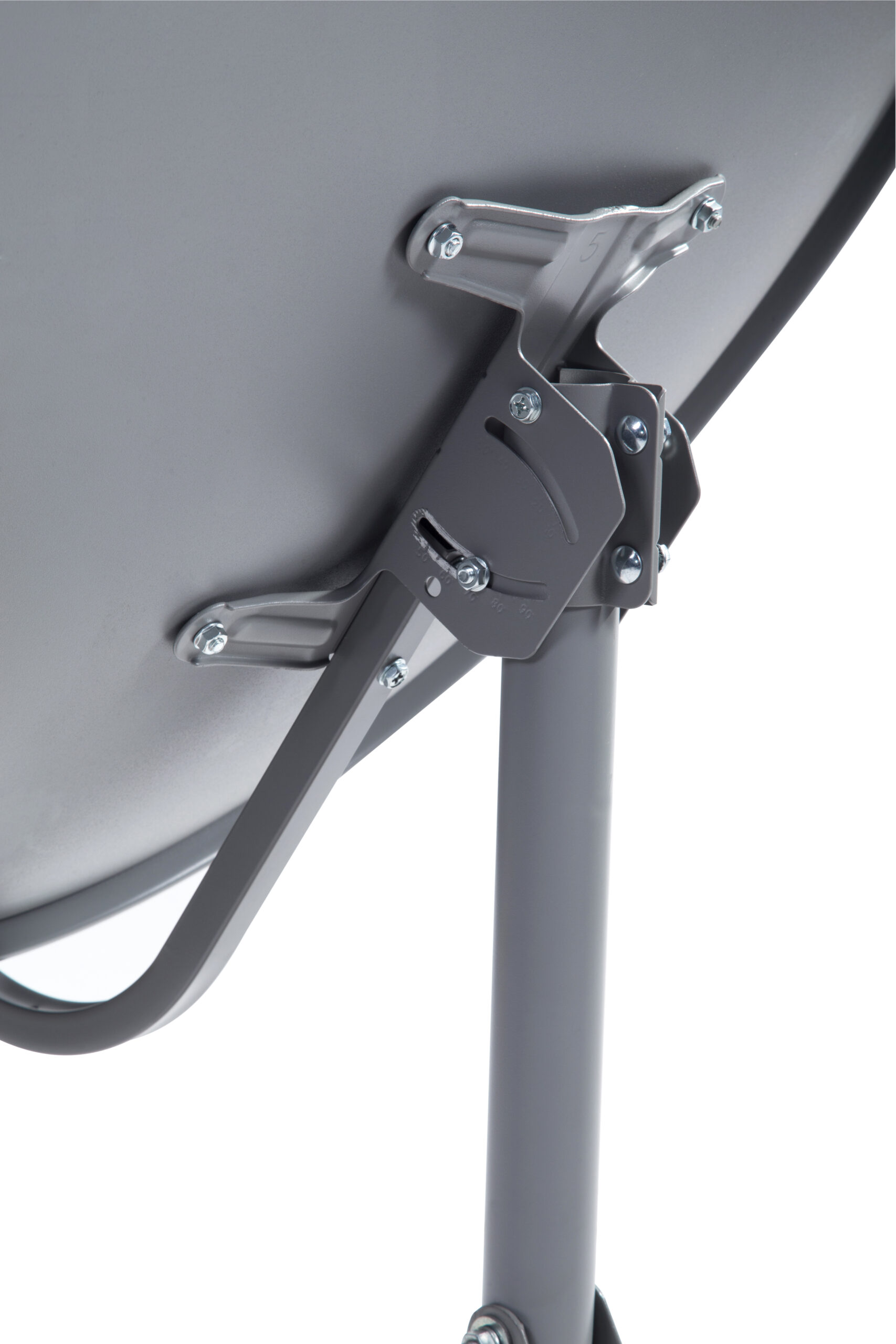

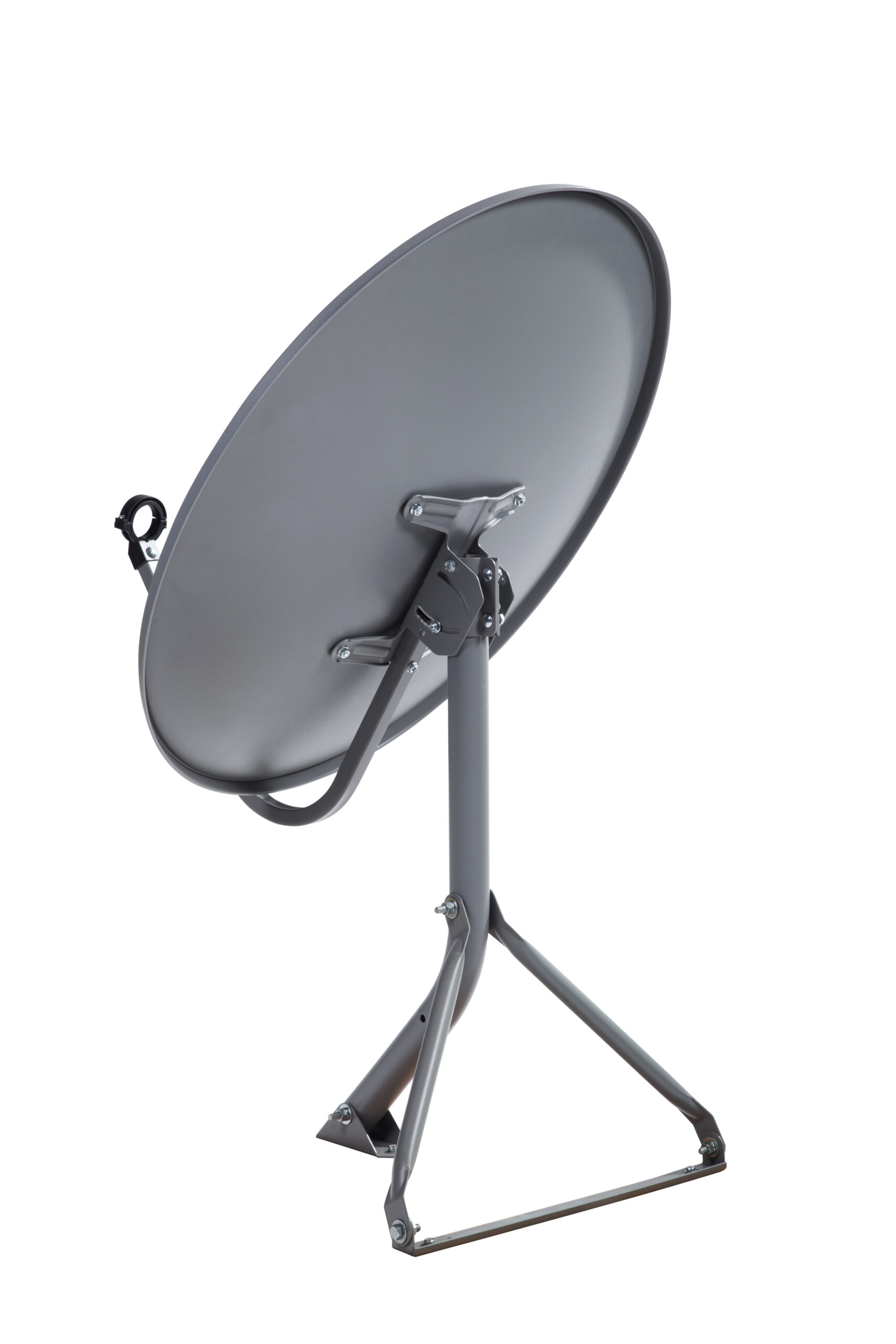

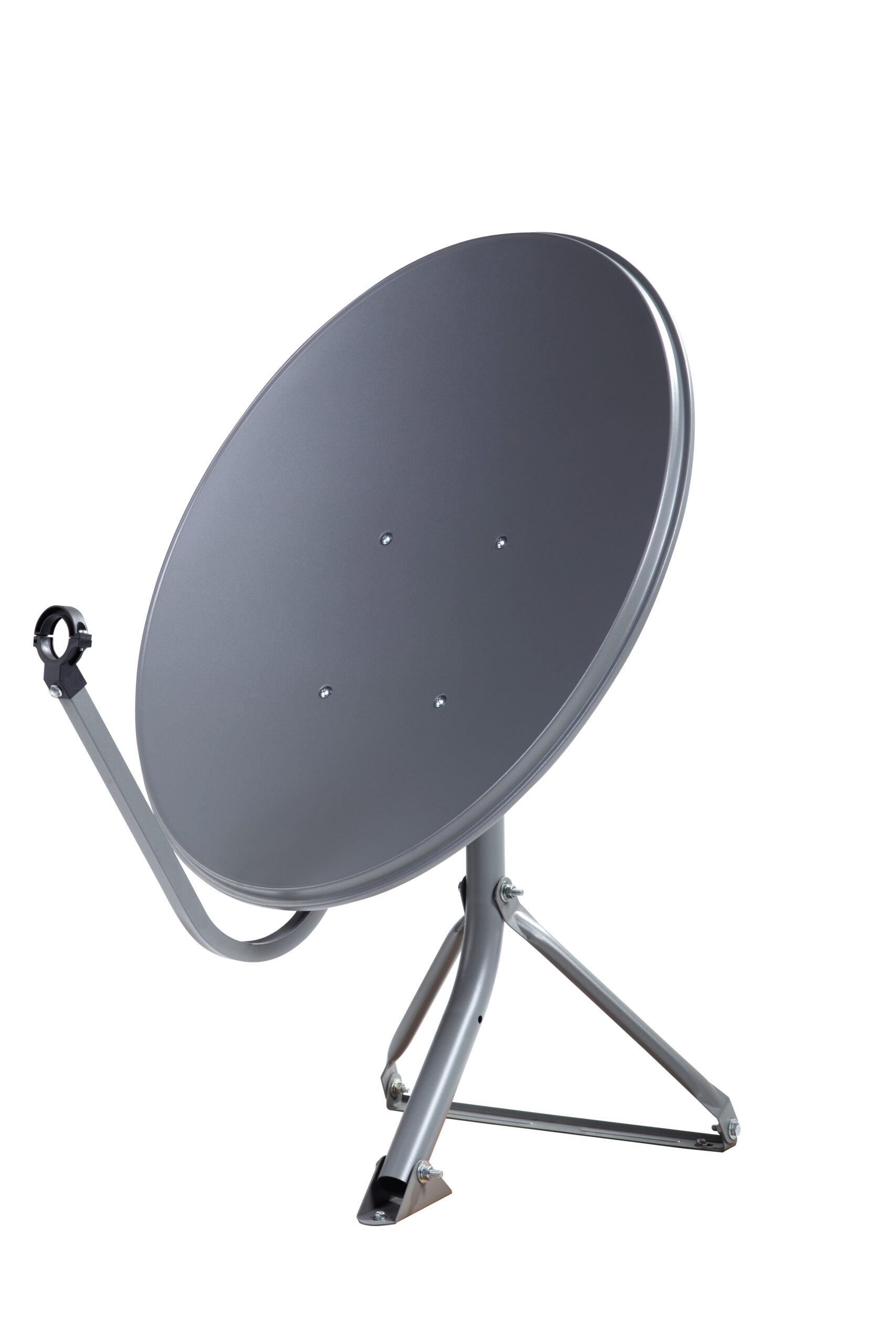

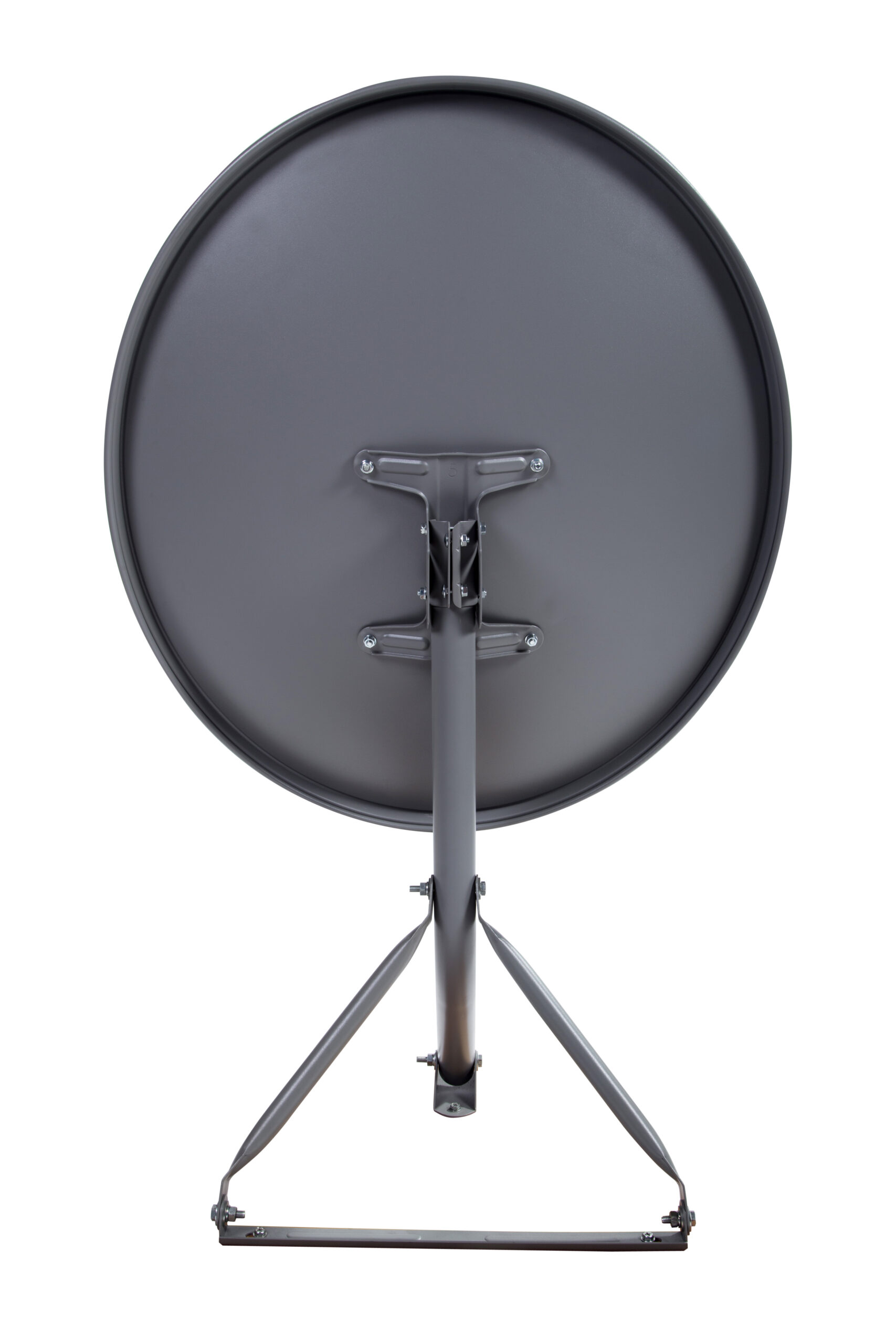

| 65cm offset dish with rolled edge | ||
| Specification | ||
| Type | Offset | |
| Offset Angle | 28.81° | |
| Reception Frequency | 10.71 – 12.75 GHz | |
| KU-BAND @12.75GHz | 37.80 db | |
| Focus Length | 325 mm | |
| Efficiency | 75% min | |
| Horizontal Axis | 65 cm | |
| Vertical Axis | 74.18 cm | |
| Azimuth | 0° ~ 360° | |
| Elevation | 20° ~ 90° | |
| Azimuth | 0° ~ 180° | |
| Elevation | 20° ~ 90° | |
| F/D Ratio | 0.5 | |
| Material | Galvanized Steel | |
| Finish | Polyester Powder Coating | |
| Suitable Pole Diameter | 42 mm | |
| Relative Humidity | 0 ~ 100 % | |
| Operating Temperature | -40°C ~ 60°C | |
