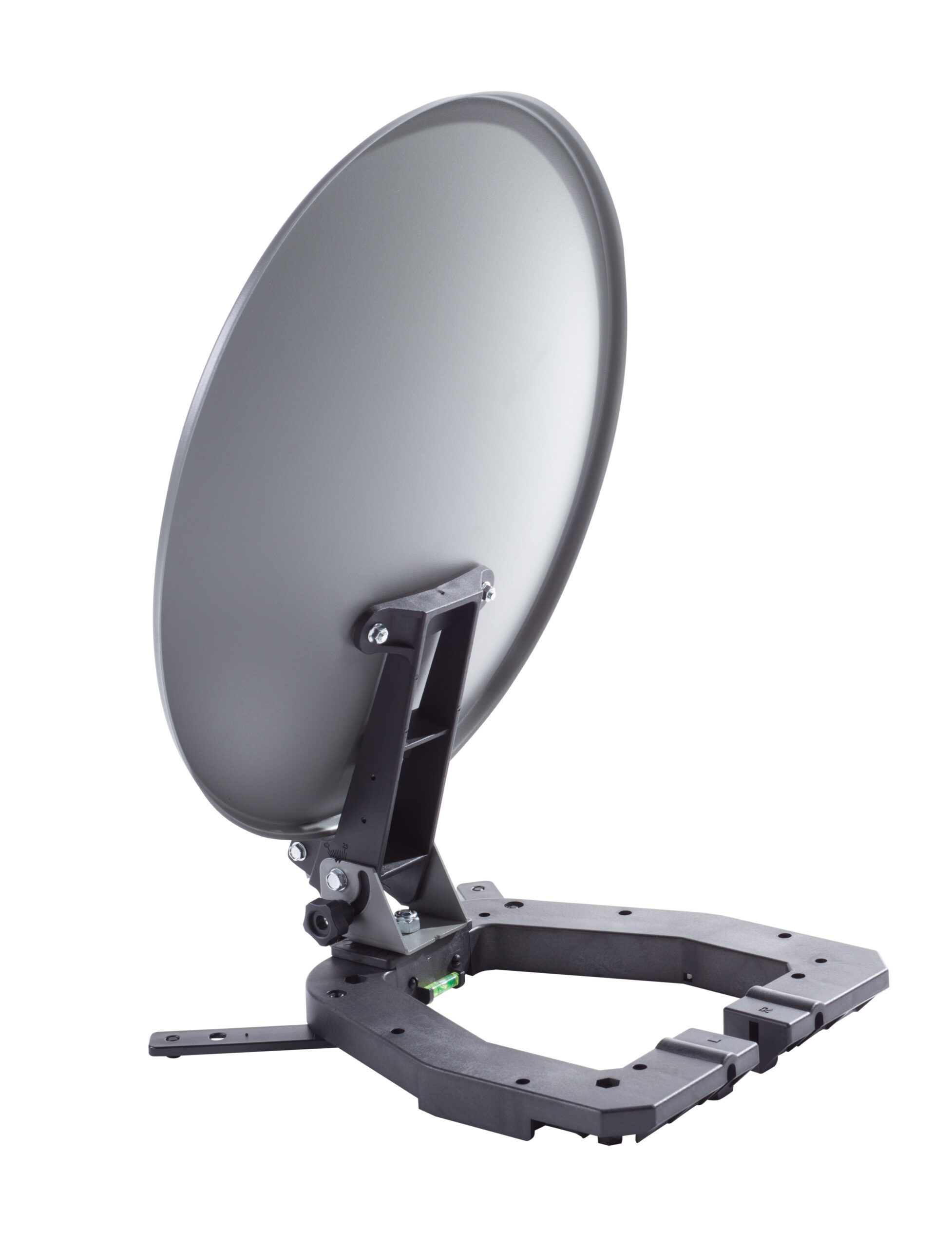

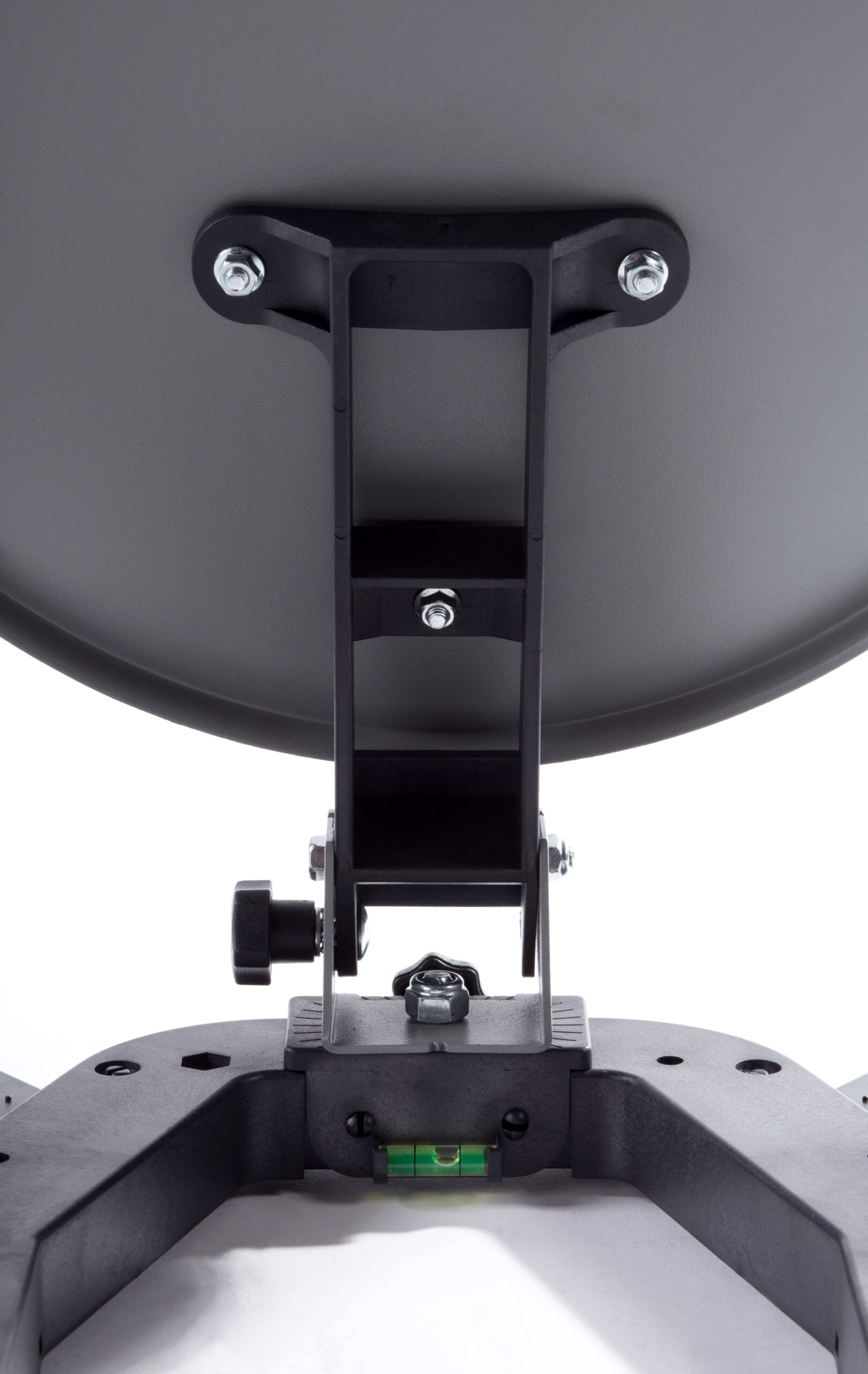

Portable Satellite Dish
Portable Satellite Dish - Regular
Feature
This portable antenna is easy to install and can be set up at the side of the table, walls and railings.
| Portable Satellite Dish | ||
| Portable Satellite Dish – Foldable | ||
| Specification | ||
| Offset Angle | 24.62° | |
| Reception Frequency | 10.70 ~ 12.75 GHz | |
| Ku-Band @ 12.75 GHz | 31.64 dB | |
| Focus Length | 210 mm | |
| Efficiency | 75 % | |
| Horizontal Axis | 35 cm | |
| Vertical Axis | 39 cm | |
| Azimuth | 0° ~ 360° | |
| Elevation | 20° ~ 70° | |
| F/D Ratio | 0.6 | |
| Material | Galvanized Steel | |
| Finish | Polyester Powder Coating | |
| Suitable Pole Diameter | 25 ~ 42 mm | |
| Mounting Type | Pole / Wall Mount | |
| Relative Humidity | 0% ~ 100% | |
| Operating Temperature | – 40°C ~ 60°C | |
