Offset Series

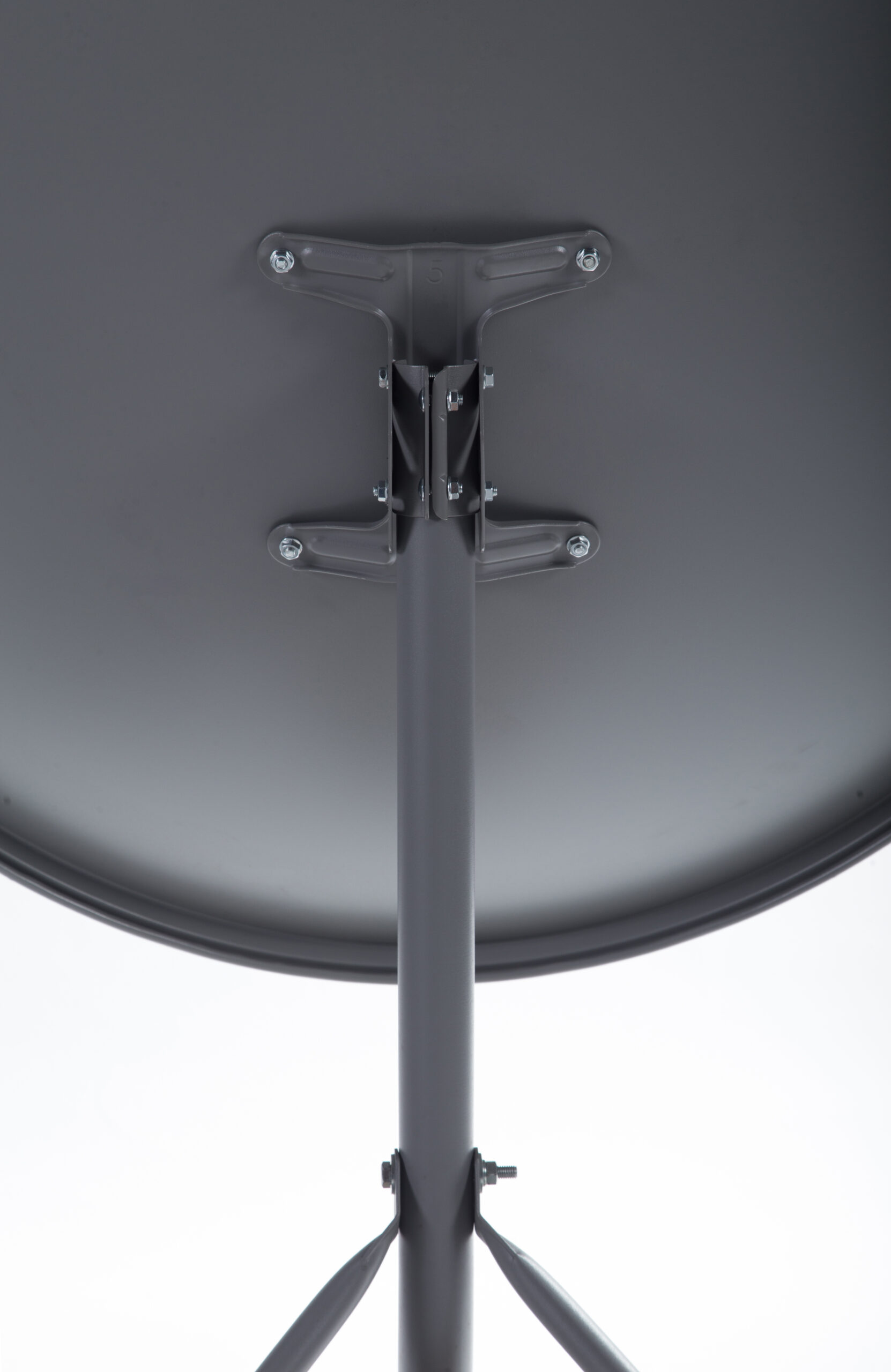

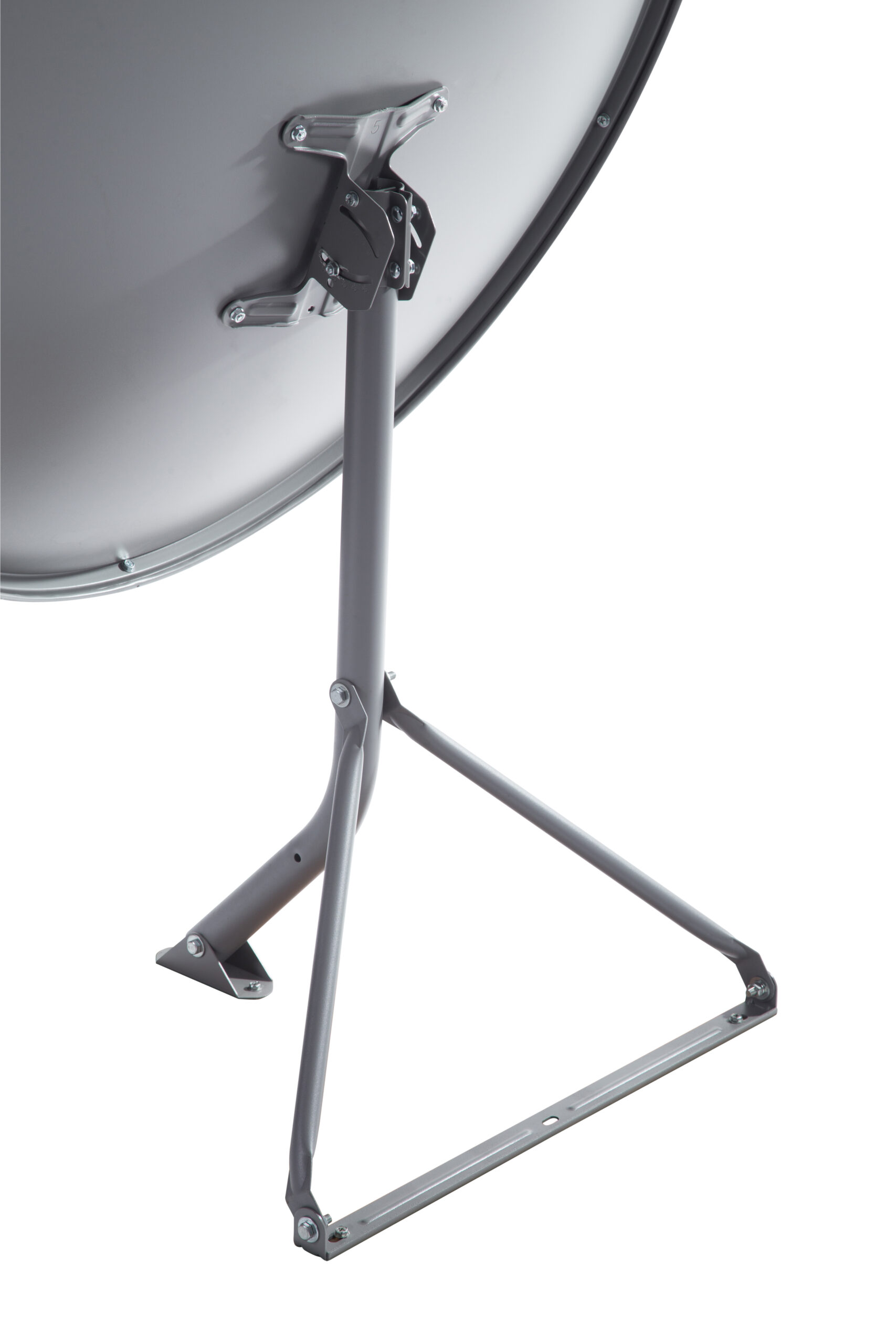

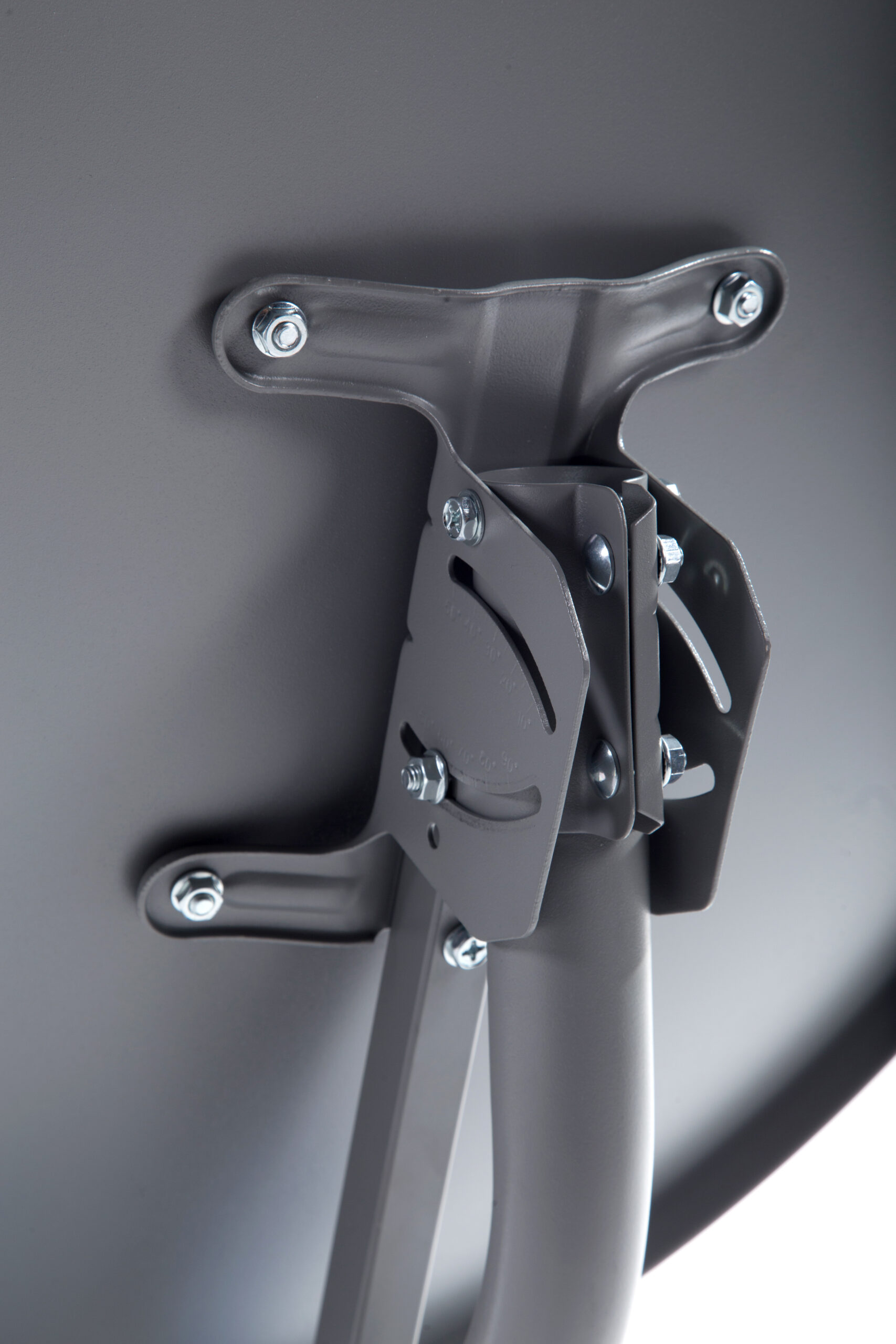

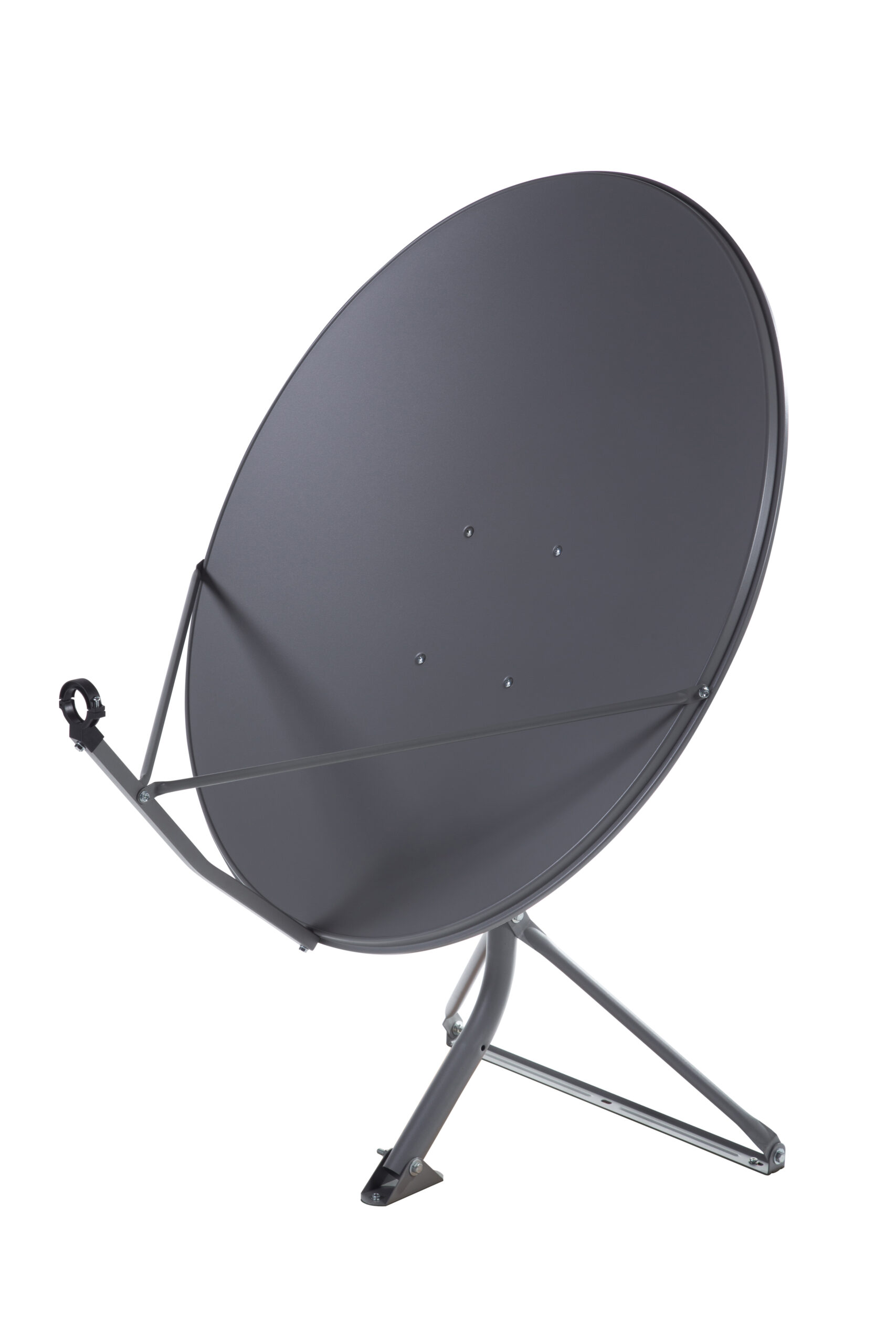

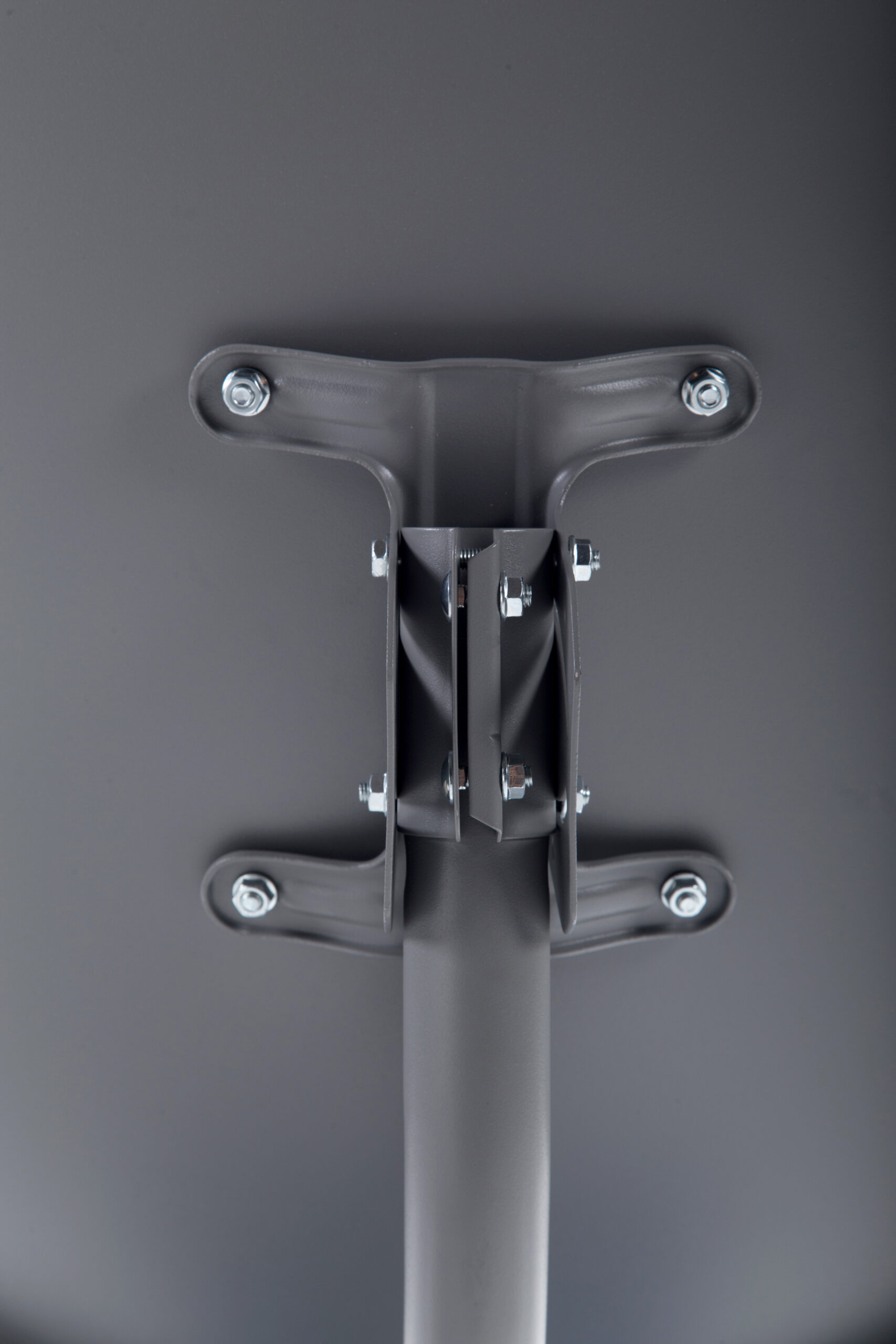

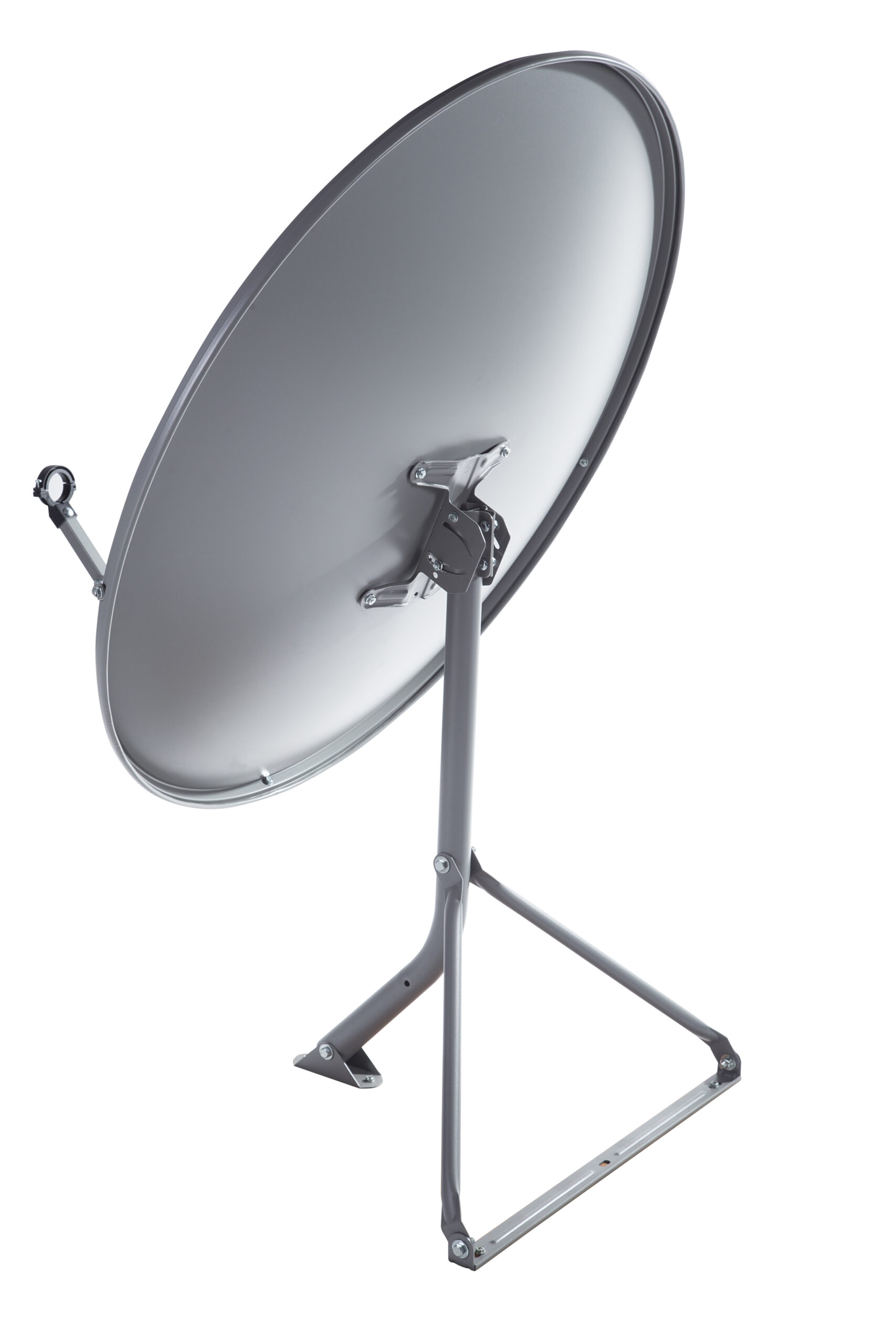

E90PF
Feature
| E90PF | ||
| 90cm offset dish without rolled edge | ||
| Specification | ||
| Type | Offset | |
| Offset Angle | 22.17° | |
| Reception Frequency | 10.70 – 12.75 GHz | |
| KU-BAND @12.75GHz | 40.62 db | |
| Focus Length | 540 mm | |
| Efficiency | 75% min | |
| Horizontal Axis | 90 cm | |
| Vertical Axis | 96 cm | |
| Azimuth (ground) | 0° ~ 360° | |
| Elevation (ground) | 10° ~ 90° | |
| Azimuth (wall) | 0° ~ 180° | |
| Elevation (wall) | 10° ~ 90° | |
| F/D Ratio | 0.6 | |
| Material | Galvanized Steel | |
| Finish | Polyester Powder Coating | |
| Suitable Pole Diameter | 42 mm | |
| Relative Humidity | 0 ~ 100 % | |
| Operating Temperature | -40°C ~ 60°C | |
