Offset Series

E75PF

Feature
E75PF

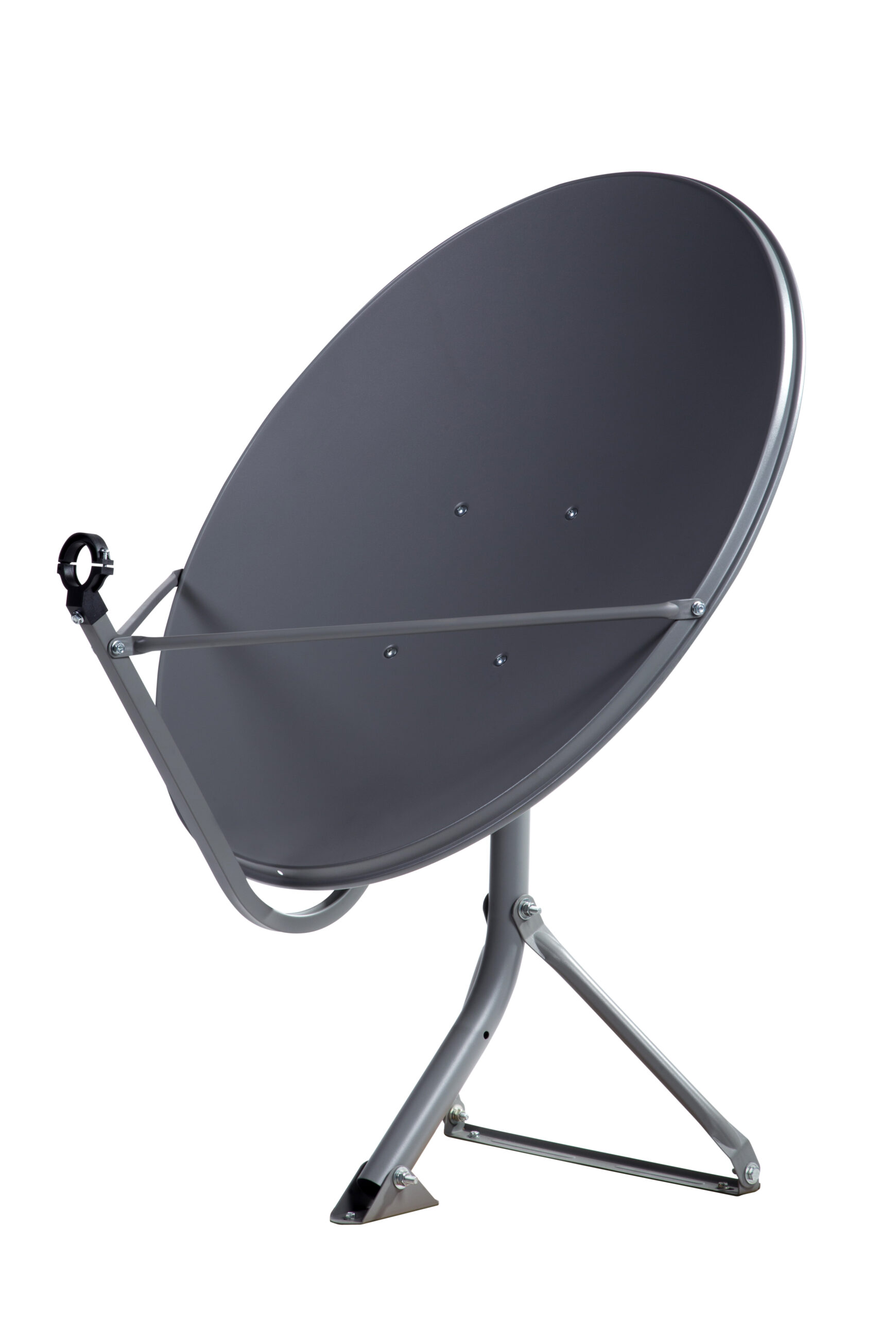

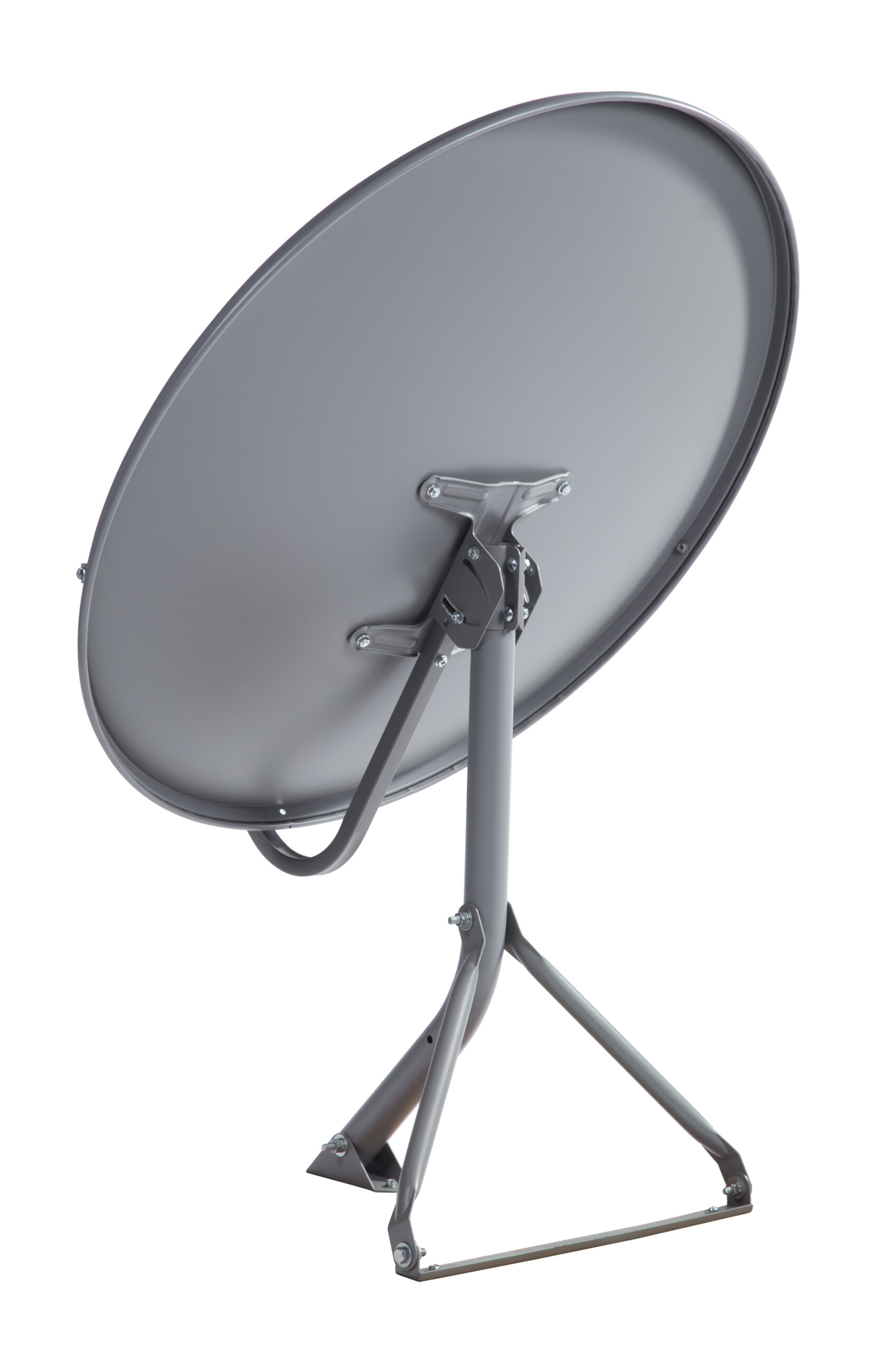

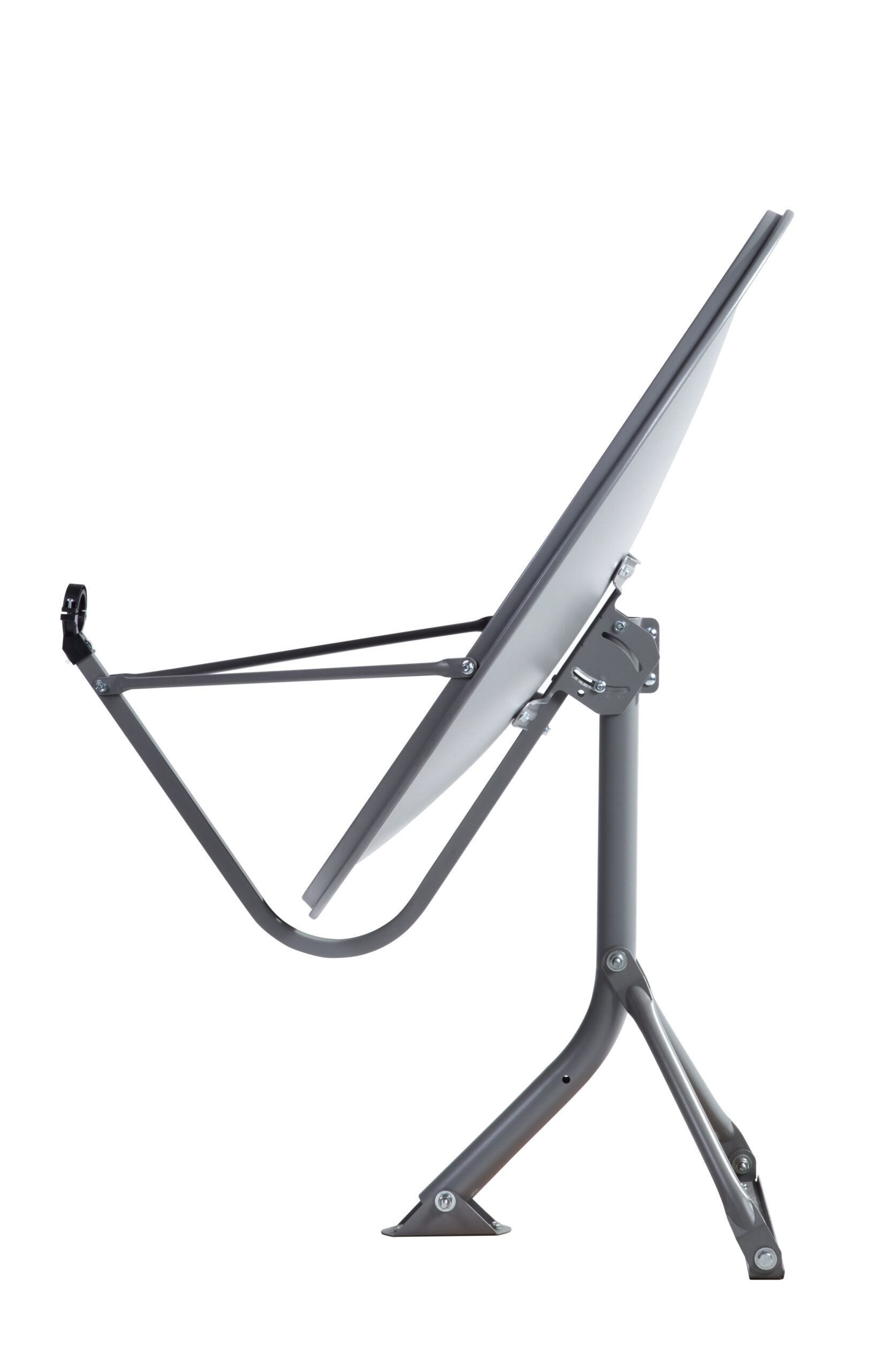

75cm offset dish without rolled edge
Specification
TypeOffset
Offset Angle24.62°
Reception Frequency10.70 – 12.75 GHz
KU-BAND @12.75GHz38.72 db
Focus Length450 mm
Efficiency75% min
Horizontal Axis73 cm
Vertical Axis80.5 cm
Azimuth (ground)0° ~ 360°
Elevation (ground)10° ~ 90°
Azimuth (wall)0° ~ 180°
Elevation (wall)10° ~ 90°
F/D Ratio0.6
MaterialGalvanized Steel
FinishPolyester Powder Coating
Suitable Pole Diameter42 mm
Relative Humidity0 ~ 100 %
Operating Temperature-40°C ~ 60°C
