Offset Series

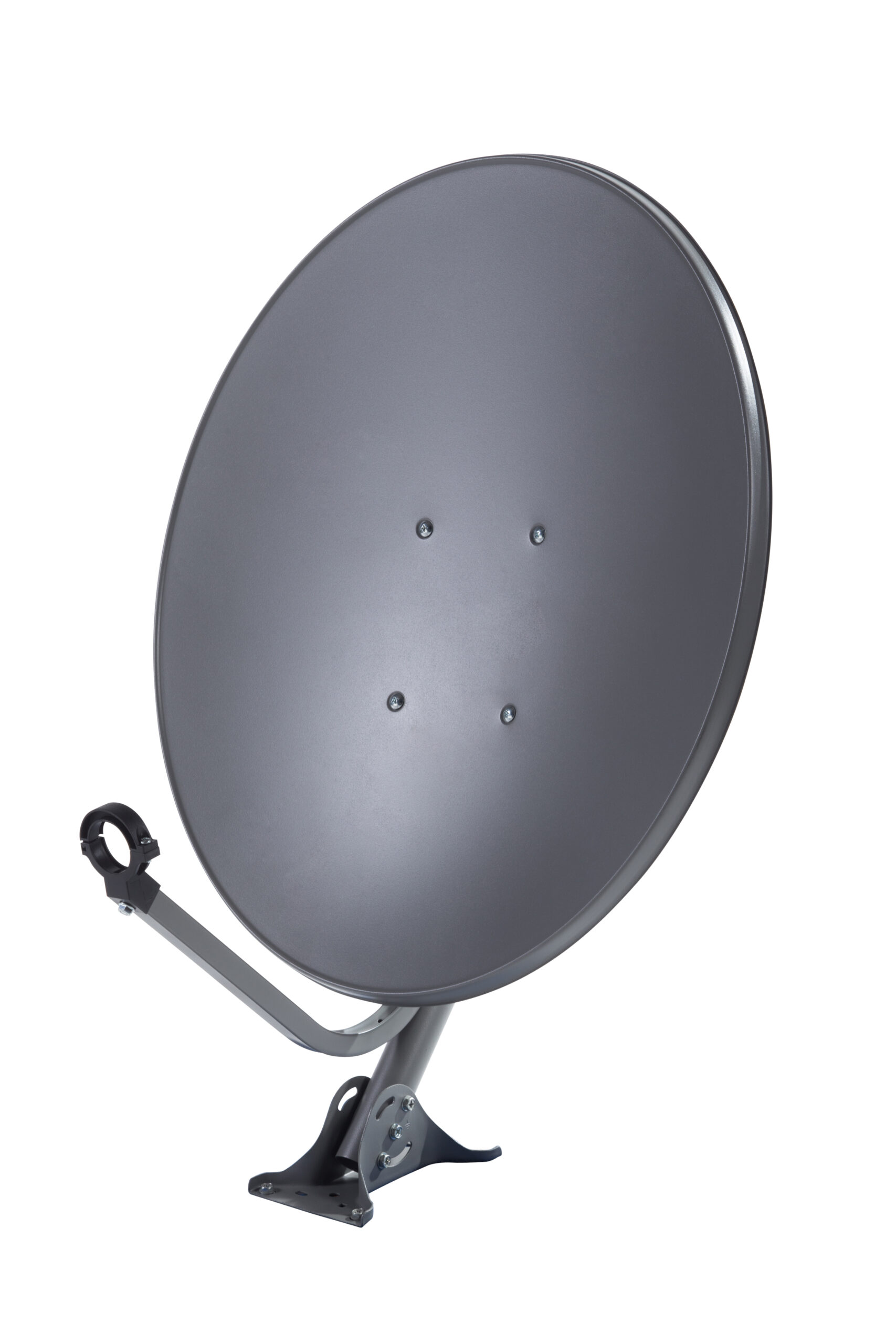

E60PF
Feature
| E60PF | ||
| 60cm offset dish without rolled edge | ||
| Specification | ||
| Type | Offset | |
| Offset Angle | 22.62° | |
| Reception Frequency | 10.70 – 12.75 GHz | |
| KU-BAND @12.75GHz | 37.10 db | |
| Focus Length | 360 mm | |
| Efficiency | 75% min | |
| Horizontal Axis | 60 cm | |
| Vertical Axis | 65 cm | |
| Azimuth (ground) | 0° ~ 360° | |
| Elevation (ground) | 10° ~ 90° | |
| Azimuth (wall) | 0° ~ 180° | |
| Elevation (wall) | 10° ~ 90° | |
| F/D Ratio | 0.6 | |
| Material | Galvanized Steel | |
| Finish | Polyester Powder Coating | |
| Suitable Pole Diameter | 38 mm or 42 mm | |
| Relative Humidity | 0 ~ 100 % | |
| Operating Temperature | -40°C ~ 60° | |
